High Yield Steam Distillation Essential Oil Extractor Suitable for Lemongrass Oil Extraction

power source : Electric

process : essential oil distillation equipment, vaccum steam distillation

place of origin : Henan, China

brand name : Kinetic

voltage : 380V/50HZ/Triple phase

power(w) : 24KW

dimension(l*w*h) : depend on model

warranty : 12 Months

Name : peppermint oil extraction machine

Application : suitable for lemongrass essential oil distillation

Type : distillation, small scale essential oil distillation machine

purity of essential oil : very pure

Usage : essential oil or hydrolat extraction

Oil yield : different as per your raw material

Material : SS304, SS316

OEM : YES

Capacity : 100L-300L

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction works , Energy & Mining, Advertising Company

Condition : New

After-sales Service Provided : Field installation, commissioning and training

Weight : depend on model

Certification : CE ISO SGS

Packaging Details : Poly wood package for rose oil extraction machine

Price : CN¥100,425.84/sets

Contact Now

Hot Sale Steam Distillation Equipment For Essential Oil/Steam Distillation Essential Oil Extraction/Rose Oil Extraction Machine

Product Description

KINETIC brand,rose oil extraction machine,advanced and Continuously improving .We had specialized in essential oil extracting technology and equipment for more than 30 years,serviced for thousands of customers all over the world.we hope to bring customers extraordinary experience and sincerely hope to serve you.

High Yield Steam Distillation Essential Oil Extractor Suitable for Lemongrass Oil Extraction

Application of essential oil distillation equipment:

This essential oil distillation equipment is popular,famous,advanced and with top quality in production of Chinese medicines,health products,biological drugs,cosmetics and food .This essential oil Distill equipment uses technology and chemical separation,can extract plant components efficiently by steam distillation equipment for essential oil , have good effect in collecting essential oil from plants.

Main advantage of rose oil extraction machine

(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100℃ high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster.
(4)Compact structure.It covers only about 1.5 square meter.

High Yield Steam Distillation Essential Oil Extractor Suitable for Lemongrass Oil Extraction

rose oil extraction machine Oil quality

Product Overviews

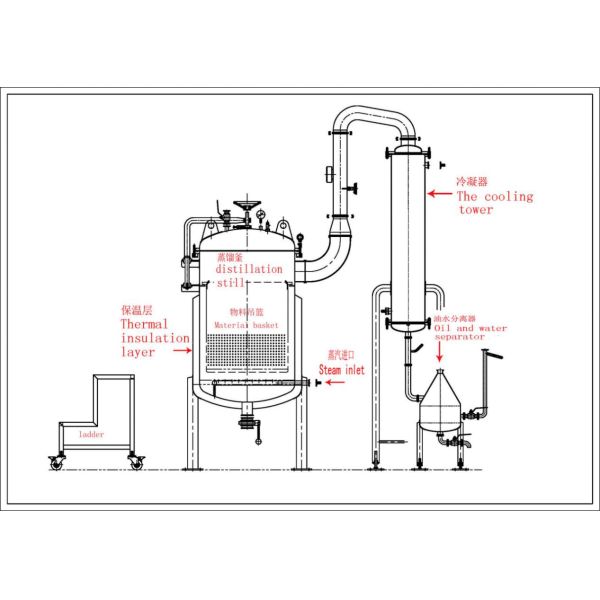

rose oil extraction machine Structure

The device consists of distillation kettle, material basket, jacket heating layer, insulation layer, demister, condensing tower,re-distillation column, rectifier, oil-water separator, Electric steam

boiler, filter and other related pipelines composition.

1, Distillation equipment are made of S30408 stainless steel, equipment, surface polishing Ra ≤ 0.6μm, outer surface matte treatment Ra ≤ 0.8μm, to ensure that no health dead ends, meet GMP requirements.

2, Include control box, manhole, cleaning ball, the water inlet, depending on the light mouth, sight glass, spare mouth, pressure gauge interface, thermometer interface, return port, outlet, through steam mouth and other related fittings. High Yield Steam Distillation Essential Oil Extractor Suitable for Lemongrass Oil Extraction

Flow Chart

rose oil extraction machine Main Parameters

1, Distillation kettle: Max volume 150L, effective volume 100L, material basket volume 80L, use jacket heating and steam direct heating, heat exchange area more 1m2

Kettle inside: design pressure: 0.09Mpa, working pressure: normal pressure; design temperature:120℃,work temperature≤100℃.Working medium:water;

Jacket layer inside: Material Aluminium silicate, thickness 50mm

Slag discharge door:Manual slag door, DN100;

Insulation layer: Material Aluminium silicate, thickness 50mm

2, Demister: Size Φ102×500, clamping band quick connect installation, demister to facilitate cleaning.Meet the GMP requirements.

3, Condensing tower: Vertical condenser. Heat transfer area is greater than 2m2.

Pipeline: designed pressure: normal pressure;working pressure: normal

Pressure; design temperature: 100℃, work temperature≤100℃.

Working medium:Secondary steam. Length: Φ25×2;

Shell: designed pressure: 0.3Mpa,working pressure: normal pressure;

design temperature: 80℃,work temperature: 15~30℃.

Working medium: cooling water.

4,Pure dew storage tank: 304 stainless steel production, volume 25L.

5, Oil-water separator: the special oil-water separator, stainless steel

tank, glass as the cup, tank volume is 30L.

6, Filter: 120 mesh filter, flow 2.0m3 / h, material for the S30408.

7, Electric steam boiler: 380v, 50Hz, adjustable 6-18kw, steam

temperature: 120℃/100℃, steam production: 26kg/h,

working pressure: 0.4 ~ 0.6MPa, cable cross-sectional area: 10m2,

water pressure: 0.4MPa.

8, Accessories: S30408 stainless steel bracket, a thermometer, a pressure gauge, a mirror.

Raw material

Flowers	Rose; jasmine; lavender; chamomile; ylang ylang; geranium; neroli; clary sage;achillea millefolium; osmanthus; peony; marigold;l aurel;
Leaves	Tea tree; eucalyptus; mint; patchouli; juniperberry; cypress; pine needles; spearmint; basil.
Roots	Ginseng; ginger; angelica; garlic; vetivert; angelica root; mugwort; borneol camphor.
Grasses	Rosemary; verbena; lemongrass; melissa; nardostachys; tarragon; caraway; dill; valerian; houttuynia; wintergreen; evening primrose.
Wood	Sandalwood; cedar wood; rosewood; Birch; holly; camphor; melaleuca; sassafras.
Resins	Frankincense; myrrh; benzoin; fir tree; amyris; Elemi
Barks	Cinnamon.
Citus	Bergamot; grapefruit; lemon; orange; lime; tangerine
Seeds	Cloves; almonds; cardamom; carrot seed; pomegranates; pepper; capsicum ; fennel.

High Yield Steam Distillation Essential Oil Extractor Suitable for Lemongrass Oil Extraction
