20kg/batch Capacity Small Oil Vacuum Distillation Machine for Eucalyptus Essential Oil Extraction

max capacity : 20kg/batch

condition : New

usage : flowers, herb, plants

type : essential oil distillation

automatic grade : Automatic

production capacity : 98%-100%

place of origin : China

brand name : Kinetic

voltage : 380V/50HZ/Triple phase

dimension(l*w*h) : depends on capacity

weight : depends on capacity

warranty : 1 Year

key selling points : Energy saving

oil type : essential oil

After-sales Service Provided : Engineers available to service machinery overseas, Video technical support, Online support

Process : Vacuum Distillation

Function : essential oil distillation

Color : Stainless steel color

Capacity : 20kg/batch

Item : small oil vacuum distillation

Application : Distillation

Form : evaporator, distiller

Power source : Electric

Material : stainless steel

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service : Video technical support, Online support

Local Service Location : None

Showroom Location : None

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : motor, Engine

Certification : CE ISO

Packaging Details : poly wood package for sea freight
100L essential oil co2 distillation eucalyptus extraction machine/plant essential oil distiller in China

Port : Shanghai, Ningbo, Guangzhou,

Supply Ability : 300 Set/Sets per Month essential oil distillation machine

Price : CN¥49,132.72-92,485.12/sets

Contact Now

20kg/batch Capacity Small Oil Vacuum Distillation Machine for Eucalyptus Essential Oil Extraction

Product Description

Product Application of essential oil extraction equipment:

Our essential oil extraction equipment,health products,biological drugs,cosmetics and food .This uses technology and chemical separation,can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from plants.

Main advantage essential oil extraction equipment:

(1)By steam-distillation to reach the extraction of essential oils.
(2)Easy operation. One people can operate this machine easily .
(3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100℃ high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be ore faster.
(4)Compact structure.It covers only about 1.5 square meter.

Technology process

The device consists of distillation kettle, material basket, insulation layer, demister, condensing tower, oil-water separator, (Gas or oil-fired boiler), and other related pipelines composition.

Detailed Images

Essential oil distillation equipment features:

It can easily be used to make essential oils from plants such as Lavender , Rosemary , Pine and Fir Needles , Peppermint , Basil , Eucalyptus Leaves etc.
This distiller is available in either propane or electric, depending on your needs.

Essential oil distillation equipment features:

This versatile distiller can be used for water distillation or water steam distillation.
It can be used for either water distillation (where the plant material is submersed in water) or as a water/steam distiller (where the column keeps plant material from direct contact with water)

Essential oil distillation equipment features:

Name: Steam distillation
Brand: KINETIC
Original: China
Power:380V/50HZ/3P, 220V/60HZ/3P

Other details:

Other display:

Product parameter

Distillation kettle	Effective volume: Effective volume 300L, Steam direct heating, Heat exchange area 5m2. Inside: design pressure: 0.09Mpa, working pressure: normal pressure; design temperature:120℃, work temperature≤100℃.Working medium:water; Insulation layer: Material Aluminium silicate, thickness 50mm Drain valve:DN75
Demister	Size Φ102×400, clamping band quick connect installation, demister to facilitate cleaning.Meet the GMP requirements.
Condenser	Vertical condenser.:Heat transfer area is greater than 2.5m2 Pipeline: designed pressure: normal pressure;working pressure: normal Pressure; design temperature: 100℃, work temperature≤100℃. Working medium:Secondary steam. Length: Φ25×2; Shell: designed pressure: 0.3Mpa,working pressure: normal pressure; design temperature: 80℃,work temperature: 15~30℃. Working medium: cooling water.

wide using:

Essential oil extract machine could used for vacuum distilling for the flower, plant, leaf, pericarp. such as Lavender , Rosemary , Pine and Fir Needles , Peppermint , Basil , Eucalyptus Leaves etc.

Other model:

Packing & Delivery

Packing
Size	To be determined
Weight
Packaging Details	The normal package is wooden box. If export to European countries, the wooden box will be fumigated.If container is too weight, we will use per film for packing or pack it according to customers special request.

Delivery
Tool	Ship, express or Air
Packing	In containers
Shipping Details	The normal shipping method is by sea. We also accept Air Transporting if you are in urgent need. You can contact your own shipping agent or ask us to arrange shipping for you.

Installation

We will assemble and the test machine before packing.also send English manual brochure.we will provide one engineer to assemble and train workers.

Our factory

FAQ

Q1: What is the Warranty for the machines?
A1: 1 year for free.

Q2: What is the Material?
A2: Stainless steel.

Q3: When can I get the price?
A3: Within 24 hours, if urgent, please directly call us.

Q4: Whether the machine price can be more discount?
A4: In general, our MOQ is 1set with very reasonable price, but if large order, we also can apply to our Manager to appropriately give you a little discount.

Q5: How to ask quotation?
A5: Please note us what type of raw materials , and how many kgs of raw materials you want to treat per batch, then we will send you quotation as soon as we can.

Q6: Can we ask the oil plant for different types of oil?
A6: Yes, but we recommend no more than 3 different types.

Q7: Essential oil plants require how large of a workspace?
A7: The land area typically depends on the capacity of the plant. We can suggest an appropriate space to prepare after given specifications, or, can design the oil plant in-house specifically to the amount of workspace available.

Q8: How long will it take to receive my products?
A8: As a general rule, it will take one Month for us to produce.

Q9: Do you offer oversea installation?
A9: We'll send professional installation engineer to help you install the equipment, as well as training your workers freely.

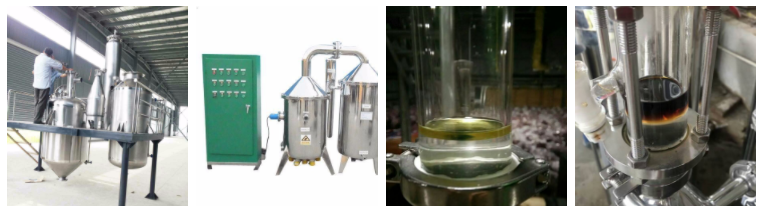

20kg/batch Capacity Small Oil Vacuum Distillation Machine for Eucalyptus Essential Oil Extraction Images
