Long Service Life Supercritical Fluid Co2 Extraction Equipment for Essential Oil State-of-the-Art Technology

max capacity : 300 kg/h

condition : New

usage : essential oil distillation

type : essential oil distillation equipment

automatic grade : Automatic

production capacity : 50L-4000L volume

place of origin : China

brand name : Kinetic

voltage : 220V/380V

dimension(l*w*h) : Depends

weight : KG

warranty : 1 Year

key selling points : Long Service Life

oil type : Flax Seed Oil, Soybean Oil, Rap seed oil, Tea Seed Oil, Basil oil, SESAME OIL, Pinenut oil, sunflower seed oil, Almond Oil, walnut oil, Peanut Oil, Coconut Oil, OLIVE OIL, Palm Oil

After-sales Service Provided : Engineers available to service machinery overseas

Color : Stainless steel color

Raw material : SS304, SS316

Function : essential oil extraction

Capacity : 50L-4000L

Advantage 1 : shorten the distillation time

Advantage 2 : pure essential oil

Advantage 3 : high oil yield

Form : evaporator, distiller

Items : essential oil distillation equipment

Applicable Industries : Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Other

Showroom Location : None

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : motor

Packaging Details : poly wood package for sea freight
Supercritical fluid co2 extraction equipment price for Essential Oil

Port : Shanghai, Ningbo, Guangzhou

Supply Ability : 50 Set/Sets per Month essential oil distillation equipment

Price : CN¥130,057.20-404,745.24/sets

Contact Now

Product Description

Supercritical fluid co2 extraction equipment price for Essential Oil

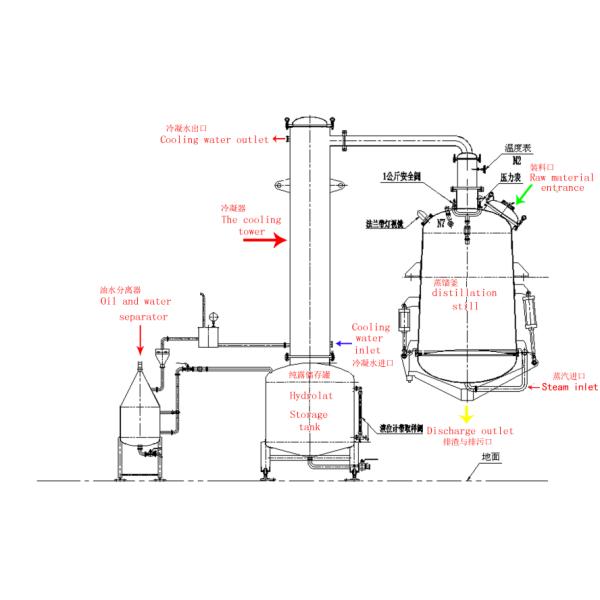

Product Structure:

The device consists of inverted vertebral distillation kettle, demister, condensing tower, oil-water separator, double filter, supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition. Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.

Essential oil distillation extracting equipment Main parameters

Distillation kettle	Effective volume: 3000L, using high-pressure steam through heating. Inside: working pressure: normal pressure;design temperature:120℃,work temperature≤100℃.Working medium:water; Upper oval headδ=5mm/S30408,Cylinder δ=5mm/S30408. Discharge slag door:DN1200, Three cylinder rotary slag gate, Single cylinder to open the door, two cylinder locking, a slag door with self-locking cylinder.
Demister	Size Φ300×750,δ=3mm/S30408,Demister inside has baffle, The top of the demister is set to the quick opening hole. Demister to facilitate cleaning.Meet the GMP requirements.
Condenser	Vertical condenser. Heat transfer area is greater than10m2 . Pipeline:designed pressure: normal pressure;working pressure: normal pressure;design temperature:100℃, work temperature≤90℃. Working medium:Secondary steam. Length:Φ25×2,Material: S30408

Long Service Life Supercritical Fluid Co2 Extraction Equipment for Essential Oil State-of-the-Art Technology

Certifications

Detailed Images

10L small home use essential oil distiller features:

Primarily this distiller is used for making hydrosols in small batches from plants in your garden.
With all the traditional distiller comparison, there are no gaskets.
Steam leaks are sealed using Elastic stainless steel to prevent leakage.
This distiller is complete with a removable column.

10L small home use essential oil distiller features:

This versatile distiller can be used for water distillation or water steam distillation.
This is our most versatile distiller.
It can be used for either water distillation (where the plant meterial is submersed in water) or as a water/steam distiller (where the column keeps plant material from direct contact with water).

10L small home use essential oil distiller features:

It can easily be used to make essential oils from plants such as Lavender , Rosemary , Pine and Fir Needles , Peppermint , Basil , Eucalyptus Leaves etc.
This distiller is available in either propane or electric, depending on your needs.
