After Service Online support Stainless steel color Steam Distillation Unit for Distillery Essential Frankincense Oil Extraction

condition : New

usage : essential oil distillation

type : essential oil distillation equipment for frankincense

automatic grade : Automatic

production capacity : 50L-4000L volume

place of origin : China

brand name : Kinetic

voltage : 220V/380V

dimension(l*w*h) : 7500*2600*5500MM

weight : Depend model on

warranty : 1 Year

key selling points : Automatic

Color : Stainless steel color

Raw material : flowers,plants,leaves, frankincense

Function : essential oil extraction

Warranty : 12 Months

Capacity : 50L-4000L

Advantage 1 : high oil yield,shorten the distillation time

Processing Types : Vaccum Steam Distillation

Form : evaporator, distiller

Items : essential oil distillation equipment for frankincense

Package : Wooden Case

After Warranty Service : Online support

Local Service Location : None

After-sales Service Provided : Online support

Certification : ISO CE

Applicable Industries : Manufacturing Plant, Retail, Food Shop, Energy & Mining, Other

Showroom Location : None

Marketing Type : Other

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : motor

Packaging Details : poly wood package for sea freight
Professional peppermint essential oil distiller Lemon Citrus Essential Oil Distillation Equipment

Port : Shanghai, Ningbo, Guangzhou

Supply Ability : 50 Set/Sets per Month essential oil distillation equipment for frankincense

Price : CN¥130,057.20-404,745.24/sets

Contact Now

Product Description

steam distillation unit distillery essential frankincense oil extract machine

Product Structure:

The device consists of inverted vertebral distillation kettle, demister, condensing tower, oil-water separator, double filter, supercharger, material conveyor belt and essential oil, pure dew collection tank, pure dew storage tank, food grade pump and other related pipelines composition. Equipment internal surface polishing Ra≤0.6μm,Outer surface matte treatment Ra≤0.8μm,To ensure that no health dead ends, in line with GMP requirements.

Essential oil distillation extracting equipment Main parameters

Distillation kettle	Effective volume: 3000L, using high-pressure steam through heating. Inside: working pressure: normal pressure;design temperature:120℃,work temperature≤100℃.Working medium:water; Upper oval headδ=5mm/S30408,Cylinder δ=5mm/S30408. Discharge slag door:DN1200, Three cylinder rotary slag gate, Single cylinder to open the door, two cylinder locking, a slag door with self-locking cylinder.
Demister	Size Φ300×750,δ=3mm/S30408,Demister inside has baffle, The top of the demister is set to the quick opening hole. Demister to facilitate cleaning.Meet the GMP requirements.
Condenser	Vertical condenser. Heat transfer area is greater than10m2 . Pipeline:designed pressure: normal pressure;working pressure: normal pressure;design temperature:100℃, work temperature≤90℃. Working medium:Secondary steam. Length:Φ25×2,Material: S30408

After Service Online support Stainless steel color Steam Distillation Unit for Distillery Essential Frankincense Oil Extraction

Details show

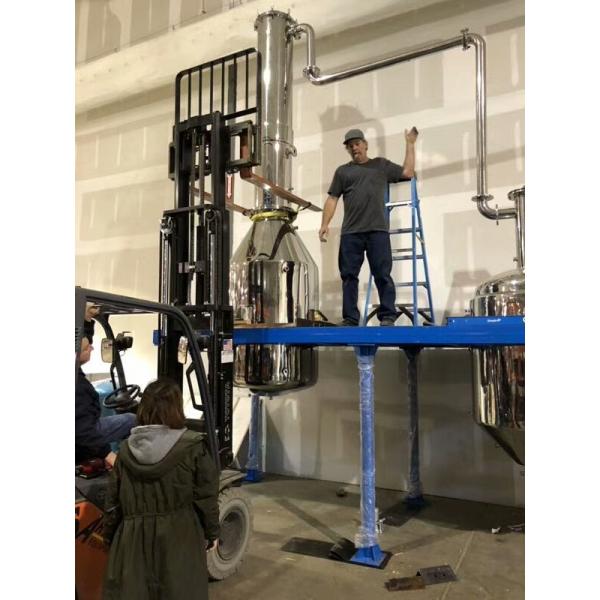

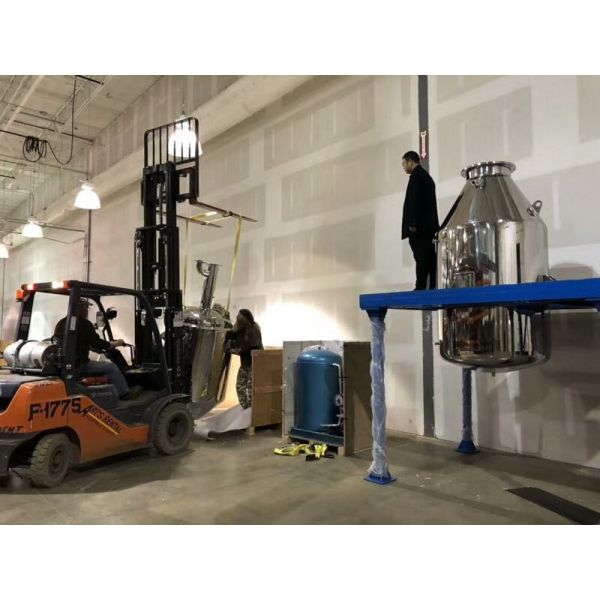

Installation case

essential oil distiller features:

This essential oil Distill equipment uses technology and chemical separation,can extract plant components efficiently by steam distillation , have good effect in collecting essential oil from palnts.

essential oil distiller features:

1)By steam-distillation to reach the extraction of essential oils.
2)Easy operation. One people can operate this machine easily .
3)High efficiency. Using indirect heating of heat- transfer oil, it can quickly reach 100C high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction
speed of essential oils will be ore faster.
4)Compact structure.

part list of essential oil distiller :

1)Extracting tank
2)Oil-water separator
3)Receiver
4)Oil cooling system
5)Plate distillation system
6)Vacuum system

7)Frame
8)Pipes
9)Valves
10)Digital temperature sensor.

After Service Online support Stainless steel color Steam Distillation Unit for Distillery Essential Frankincense Oil Extraction Images
